5.8GHz 5700-5900MHz RF Power Amplifier Module 30Watt For Signal Jammer Assembly

Cheapest 5.8GHz 5700-5900MHz 30Watt RF Module Power Amplifier For Signal Jammer Assembly

This 5.8GHz (5700-5900MHz)30Watt RF module adopts advanced sweep frequency technology , it can be used for signal jammer device assembly . We can provide the RF module for most signal bands such as WiFi5.8G WiFi2.4G WiFi5.2G CDMA 800,GSM 900,DCS1800,PCS1900,3G CDMA,GPS L1,WiFi,4G LTE 800, GPSL2/Glonass,4G LTE 700,4G LTE 2600,4G LTE 2300 , and can 5W-200W power is available .Welcome to inquire.

Features :

• Need operate at 24-28V volatge and can full wattage at this voltage range
• Support 5.2GHz and 5.8GHz high frequency band or other frequency band
• Applicated in communication and anti drone jammer equipment
• High performance chips build in but no signal source also
• Light weight easy to carry and portable to installation

Attention :

• Power supply better carry about 28V 4.2A when itself 2.8A for its stable work

• Heat dissipation measure is necessary including the thermal glue, suitable-size heat sink and cooling fans

• Antenna or Load must be firstly connected before the power supply is ON or it will be short wire

• If first time operate that need read the Operation Instructions first.

Pictures:

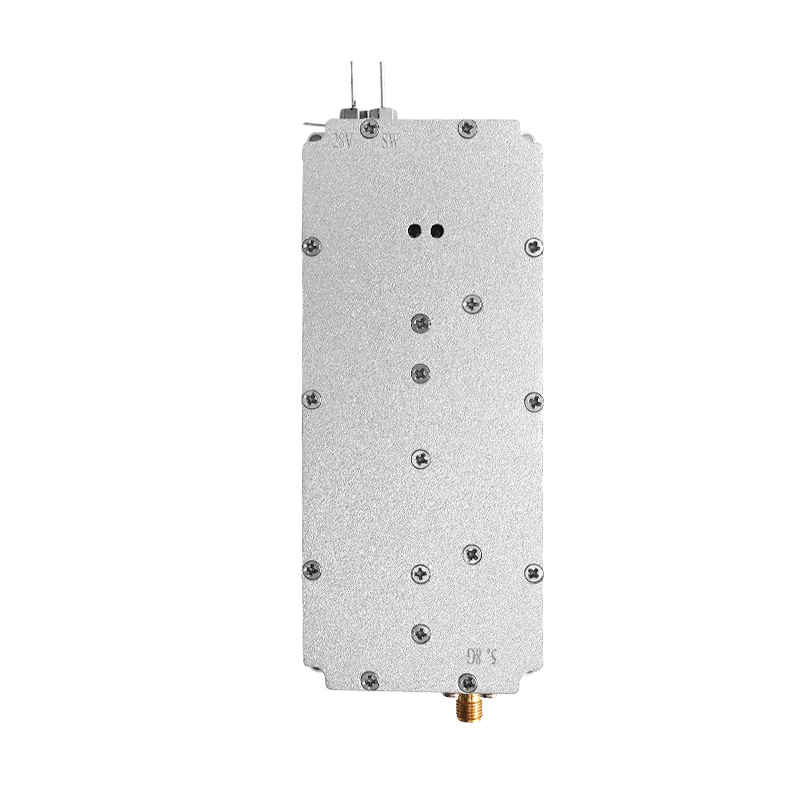

Jammer Assembly RF power amplifier module

Signal Jammer RF power amplifier module

5.8GHz RF amplifier module

5.8GHz 5700-5900MHz RF Power Amplifier Module 30Watt For Signal Jammer Assembly Images
